12UM 640x512 USB Output Modul Thermal Saiz Kompak
|
Nombor model |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Modul Thermal |
||||
|
Sensor imej |
VOX TROD PANAS FOCAL |
|||
|
Maks. Resolusi |
640 × 512 |
|||
|
Kadar bingkai |
Boleh laras, 6Hz hingga 30hz |
|||
|
Selang piksel |
12μm |
|||
|
Waveband respons |
8μm hingga 14μm |
|||
|
Netd |
≤ 40mk (@ 25 ° C), F# = 1.0 |
|||
|
Lensa (panjang fokus) |
9.1mm |
15mm |
19mm |
25mm |
|
Nombor f |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
IFOV |
1.3mrad |
0.8mrad |
0.6mrad |
0.48mrad |
|
Bidang pandangan (h × v) |
48.3 ° × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Jarak fokus |
2m |
5m |
7m |
8m |
|
Pengukuran suhu |
||||
|
Julat suhu |
- 20 ° C ~+150 ° C & 100 ° C ~ 550 ° C. |
|||
|
Ketepatan suhu |
Maksimum (± 2 ° C, ± 2%) pada suhu ambien 25 ° C dan suhu objek melebihi 0 ° C |
|||
|
Jarak suhu (berdasarkan 0.65 × 0.65m) |
10m (paling jauh) |
15m (paling jauh) |
20m (paling jauh) |
25m (paling jauh) |
|
Peraturan Thermography |
3 jenis peraturan pengukuran suhu, 21 peraturan (10 mata, 10 wilayah, dan 1 baris) |
|||
|
Output data |
Data suhu 16bit |
|||
|
Paparan imej |
||||
|
Pelarasan kontras |
Ya |
|||
|
Pelarasan kecerahan |
Ya |
|||
|
Palet |
15 palet warna boleh laras, panas putih lalai |
|||
|
Mod FFC (pembetulan medan rata) |
Auto, manual, pembetulan luaran |
|||
|
Dde |
Ya |
|||
|
Umum |
||||
|
Antara muka perkakasan |
USB2.0 FPC |
|||
|
Kuasa |
DC 5V ± 5% |
|||
|
Penggunaan kuasa |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65W |
|
Getaran & Kejutan |
Getaran: getaran sinusoidal, 20 m/s ², 3 - paksi Kejutan: Half Sine Wave, 30 g/11 ms, 3 - Axis 6 - Way Way |
|||
|

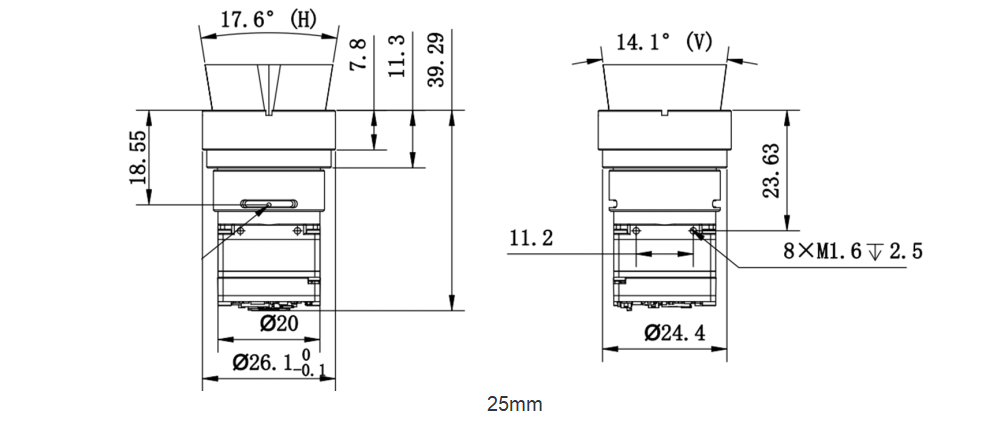

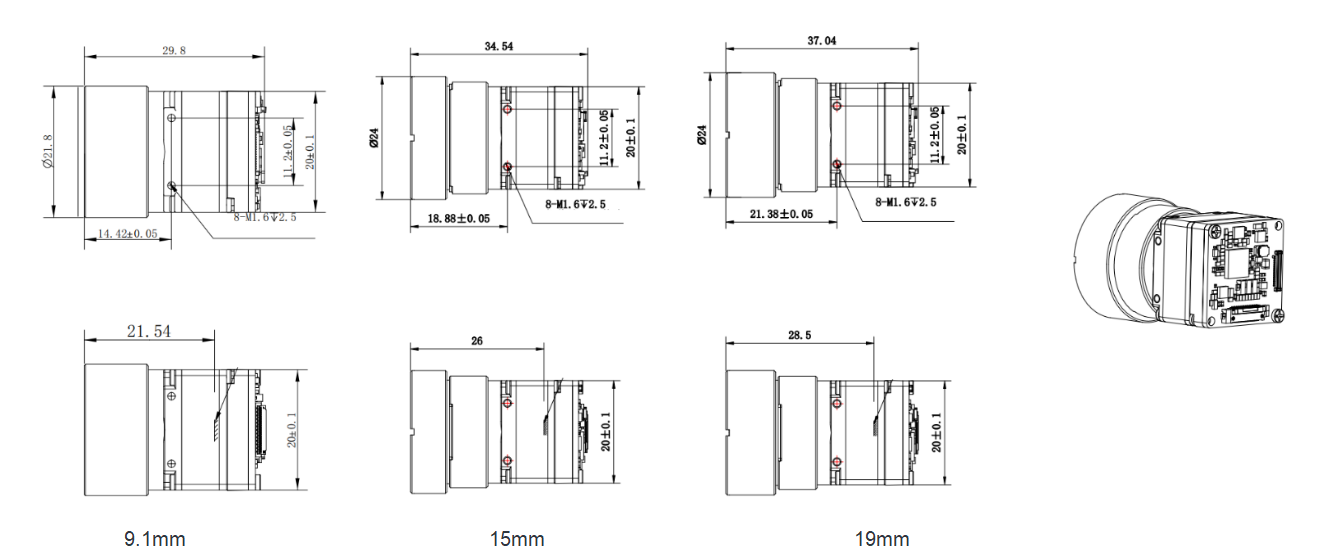

Dimensi (mm) |
29.8*20*20mm |
34.54*20*20mm |
37.04*20*20mm |
39.29*20*20mm |
|
Berat |
≤22g |
≤28g |
≤32g |
≤33g |
|
Suhu kerja |
- 40 ° C ~ 70 ° C. |
|||
